Model No.︰CK210sp
Brand Name︰YORNEW
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Product No: CK210B

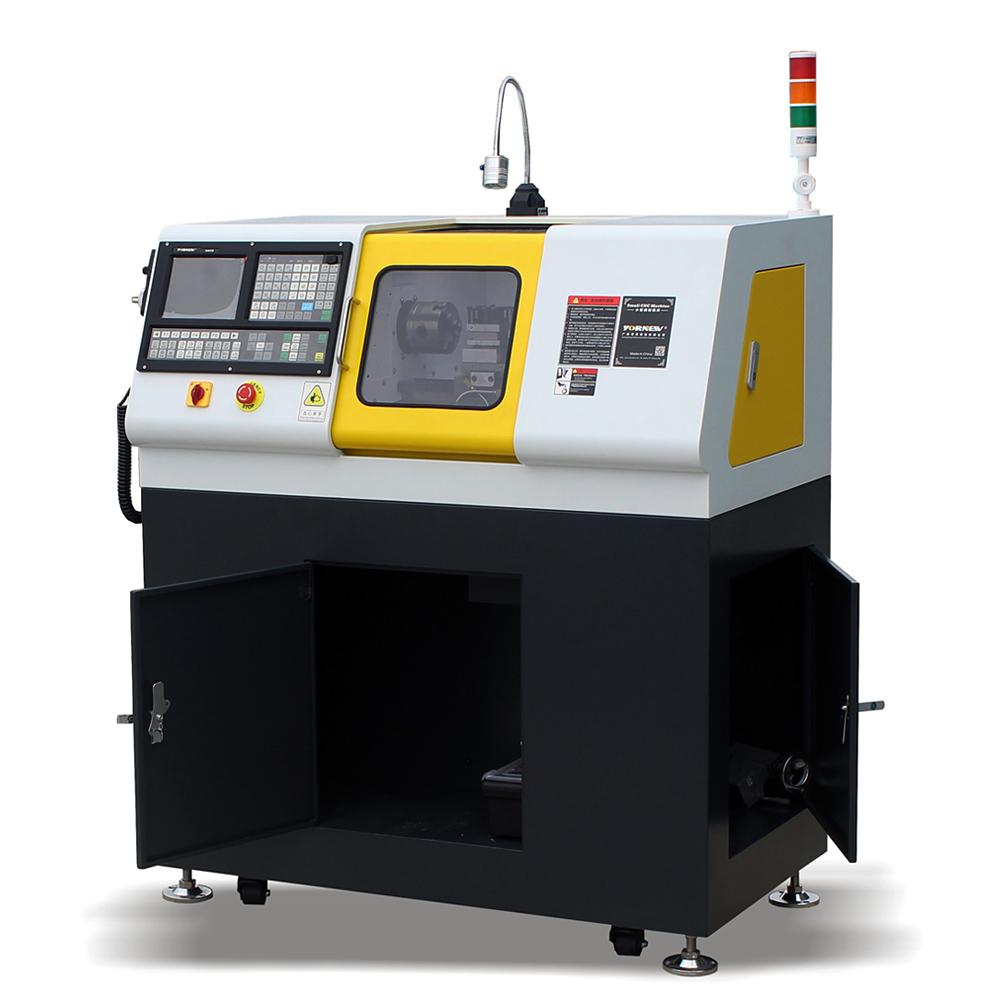

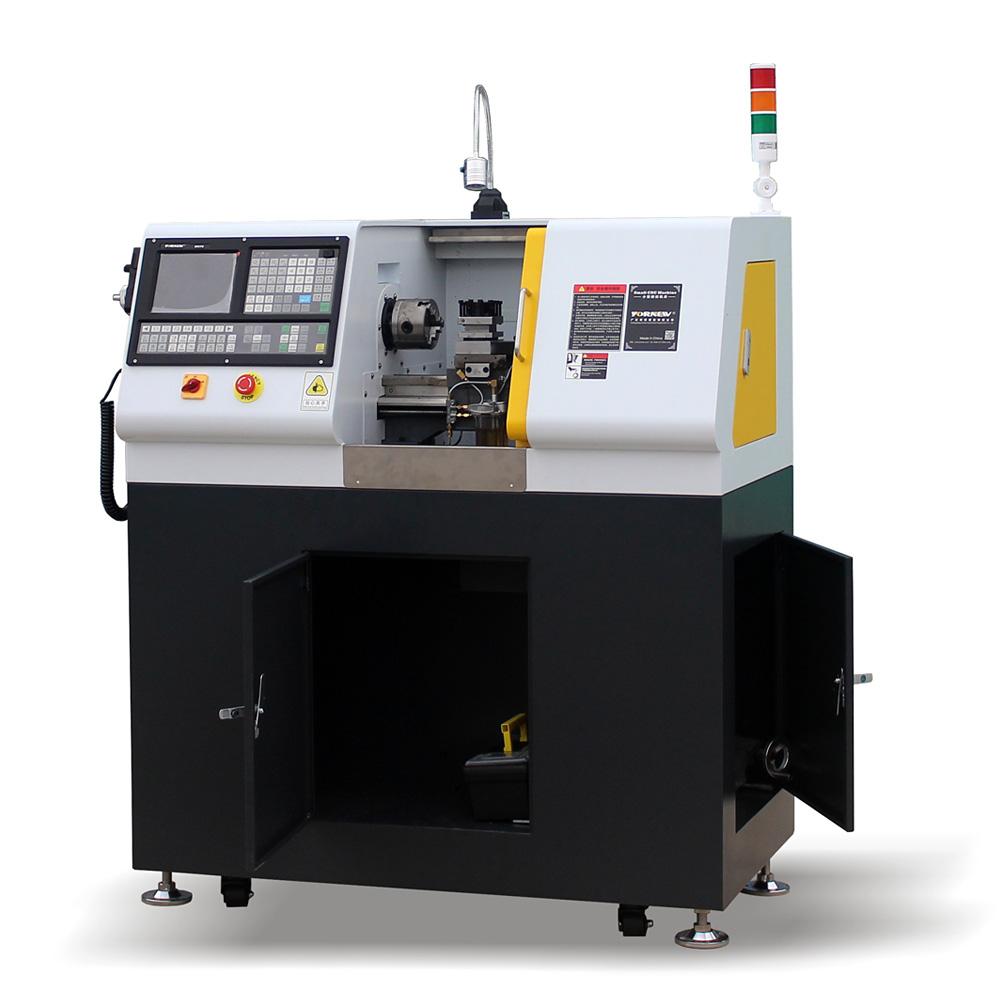

Product Name: Small CNC Lathe
The CK210B is a small CNc lathe,with KY980Tc Turning CNc system（Optional Siemens system ）,support multi lanquage interface display,the standard specincludes MPG hand wheel,automatic 4 positions tool post(option 8 tools),selection of high -quality casting materials,more compact,High strength guide way, ballscrews, semi-automatic lubrication system and with Flood Coolant, With interlocking guard.Xz axismotor type are servo motorldeal for cutting a range of resistant materials such as wax, plastic, acrylic, free cutting alloys,aluminiumand steel. Recommended software programs( MasterCAM. UG. Fusion360, SolidWorks, etc. ).suitable for schools education & training,small job shop. has several functions: turning inner and outer cylindrical surface, end surface, taper surface and thread of shaft, etc.
|
Technical parameters |
|
|---|---|
| Turning diameter over bed(max) | 210mm |
| Chuck diameter | 100mm |
| Spindle speed | 300-1750r/min(control speed of G code) |
| Spindle through-hole | 26mm |
| Spindle mount | MT4 |
| Spindle motor power | 1100W |
| X axis travel | 90mm |
| Z axis travel | 300mm |
| X/Z axis motor | 400W Servo Motor |
| The max moving speed | 4000mm/min |
| The max feeding speed | 2000mm/min |
| Control system | YORNEW 980Tc Turning CNC System,Optional siemens 808D |
| MPG handwheel | 4 axis |
| Automatic tool change system(ATC) | 4 Tools (option 8 tools) |
| Tool dimension | 12*12mm |
| Tailstock taper | MT2 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Positioning accuracy: | 0.02mm |
| Repeatability accuracy | 0.03mm |
| Power | 220VAC / 110VAC |
| Weight(NW/GW) | 280/320KG |
| Overall dimension | 1170*700*1300mm |
| Packing size | 1200*860*1500mm |
Payment Terms︰ TT
